Original plan
I originally planned on using a Raspberry Pi 5 to begin my home lab journey. The small but mighty RasPi can handle just about everything I want it to, occupies very little space, and draws a negligible amount of power. It seems like the perfect way to start a home lab. The only off putting aspect is price; it’s just a bit more money than I wanted to spend. As a result, I decided against getting one until I had good reason to.
New plan
Without good reason, I was recently browsing VarageSale (a local buy/sell platform), and noticed a Lenovo ThinkCentre m710e SFF for sale. I recall, at one point, browsing Lenovo’s “tiny” offerings as a buffed-up alternative to a RasPi, but was worried about cooling issues since everything is crammed into a tiny case with little airflow. The SFF version, however, has a bigger fan and more airflow, so less concern there.
This machine was listed with the factory specs: “an Intel Core i5 processor, 8GB of RAM, and a 256GB solid-state drive”. The seller didn’t mention which i5 offering was installed, so I asked. A few hours later, I received the following messages:
I expected them to just turn it on and check using the GUI, but I guess this works too. With this information, I now figured I was getting a machine with the below spec sheet:
This is quite sufficient for my needs, and for $80, it seemed like a decent deal, so I bought it.
Seeing as it’s a used machine and the original owner had already broken the seal of the thermal paste, I decided to disassemble everything, clean it out, reapply some thermal paste, and reassemble. Upon opening the case, I was greeted by this:
That’s not the 256GB SSD I was promised! But I’m not complaining either! I was planning on putting a 2TB HDD in anyways, so this was a nice surprise.

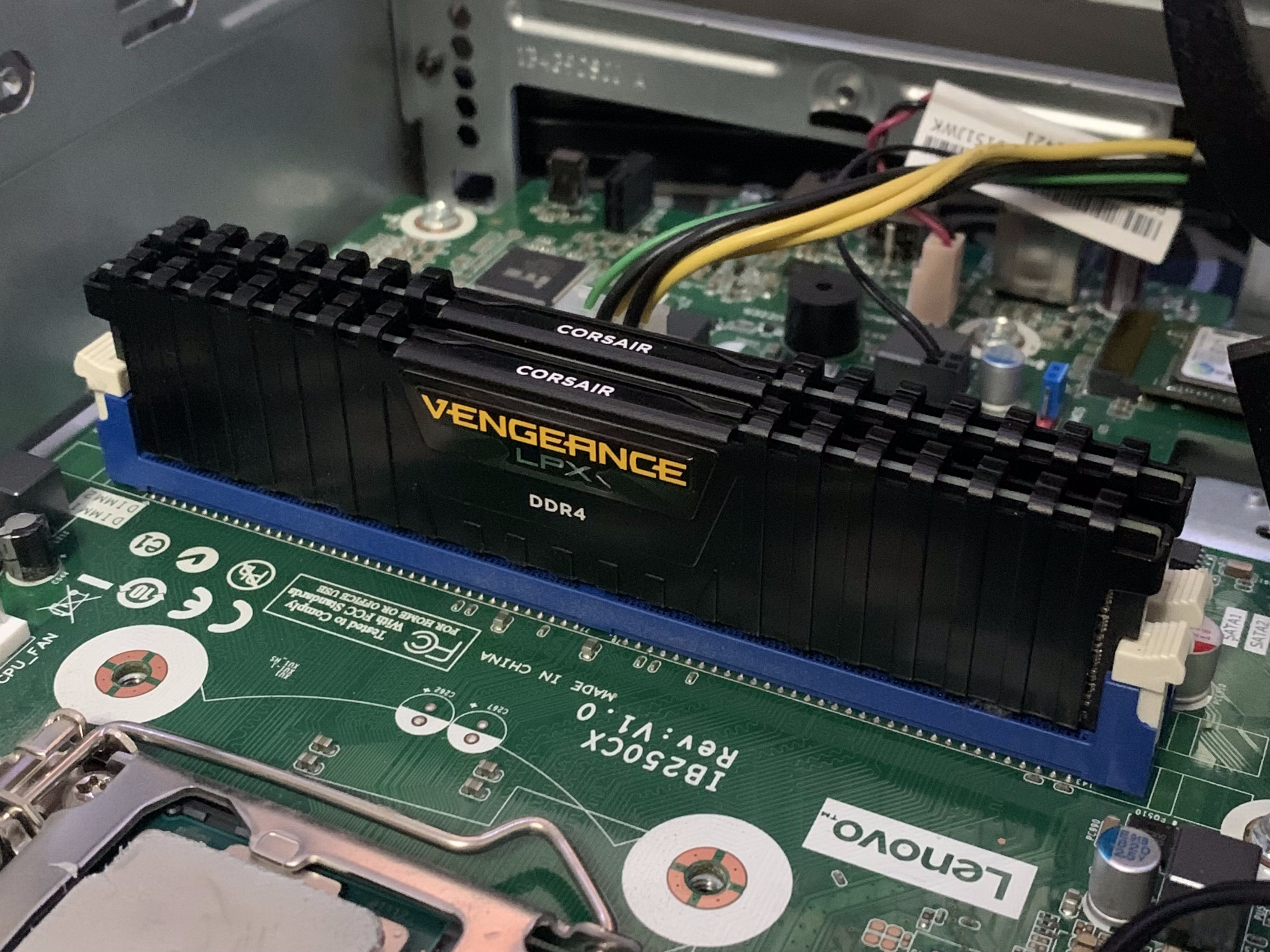

Underneath the drive tray lies the original M2 SSD and RAM slots. After removing the tray, and getting a better look at the RAM, I found that the RAM had been upgraded as well! Instead of the factory 8GB, it has 16GB (2x8GB). Score!
After blowing out a metric fuckton of dust, I used a microfibre cloth and some rubbing alcohol to clean off the thermal paste from the CPU and cooler, reapplied using the trusty 5-dot method, and stuck everything back together. I also affixed the SSD to the drive bay using some extra bolts I had laying around since it was loosely flopping around there previously.
Then I plugged it in, booted it up, and double checked that everything worked. However, upon start, I was not greeted with a factory fresh Windows install as expected. No, I was automatically signed in to the previous owner’s account. I reached out to the previous owner and informed them that:
- All of their files were still on the computer
- No authentication of any kind was required to access these files
- I would be formatting the drives without touching any of the files (to hopefully give them some peace of mind)
Let this be a reminder to use all to always wipe drives before selling them. Or better yet, take them out and smash them with a hammer until they’re nothing but shards and dust of metal and plastic. Since I wanted to use these drives, I didn’t choose the former option, but I did make sure to format everything.
Next I had to decide what to put on the bare metal. While I could have gone the route of Proxmox, I preferred the idea of using a vanilla Linux distro for the sake of learning. I was split between Debian and Fedora, but ultimately chose Debian for its stability and familiarity (as I formerly used Ubuntu as a daily driver). I also installed a desktop environment (KDE) since I figured it might be nice sometimes. Obligatory neofetch + htop:
For a GUI, however, I planned to primarily use Cockpit. This will be the focus of the next installation of this series.
